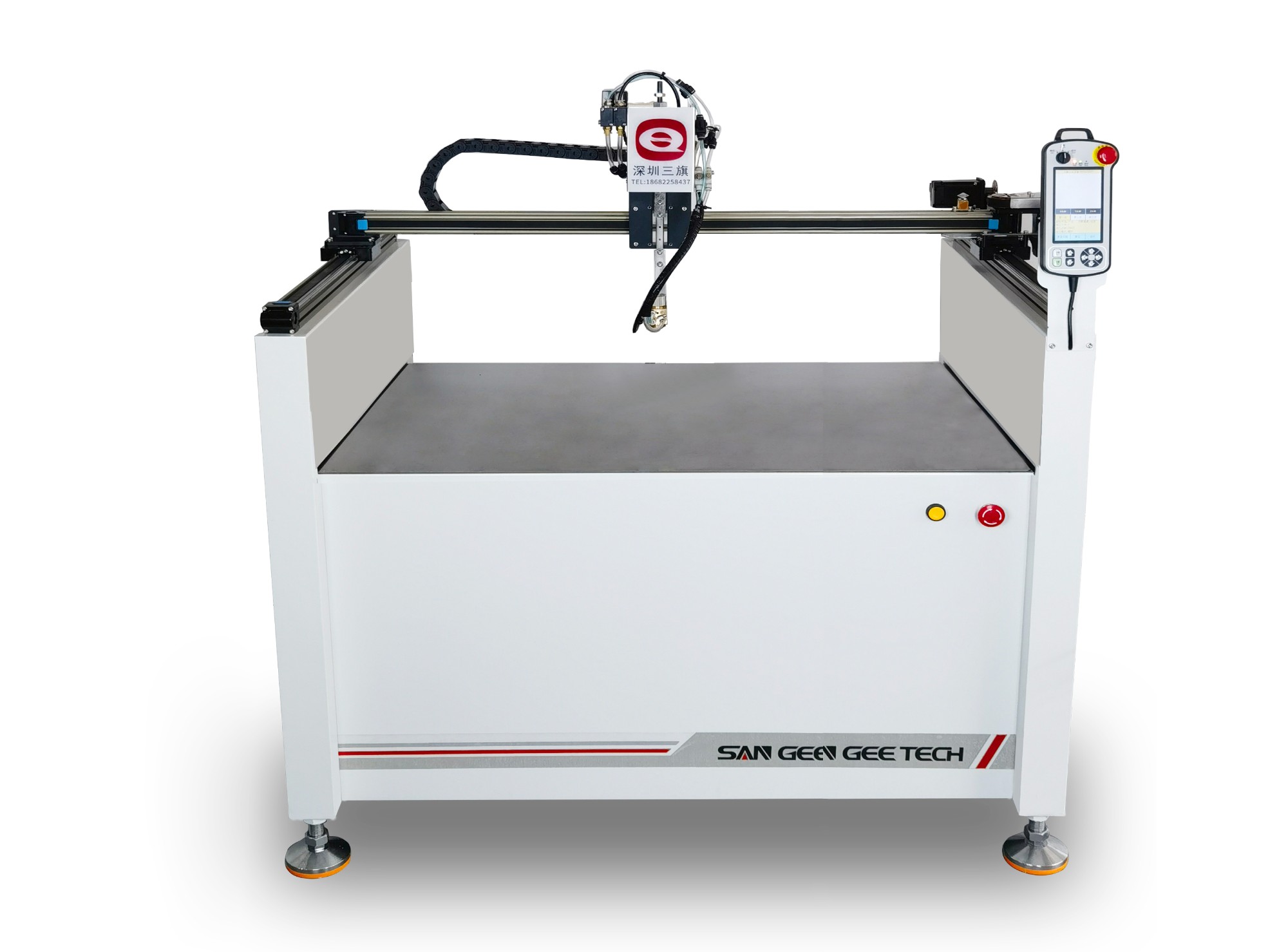

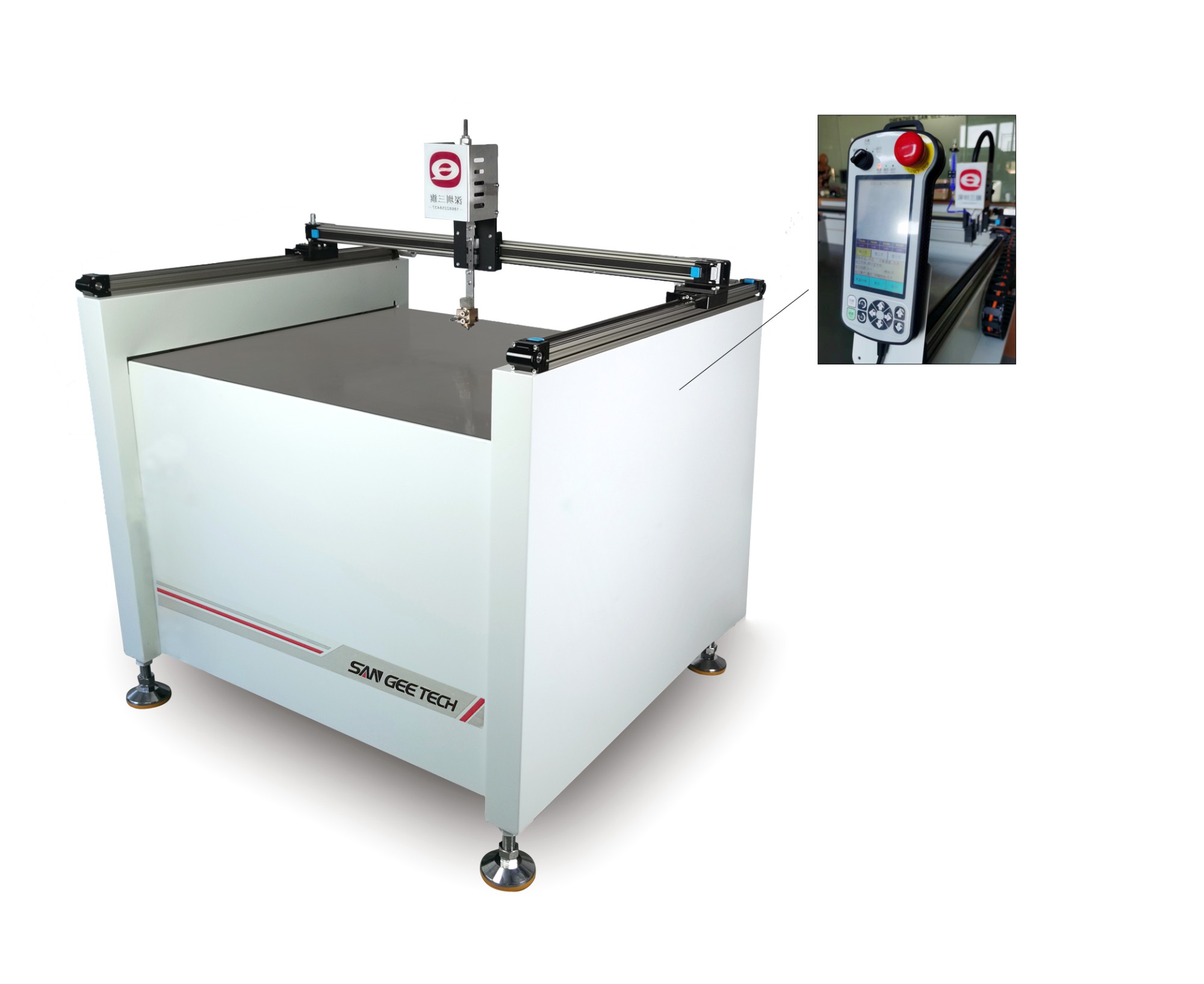

Automatic Glue Drawing Machine

Automatic Glue Drawing Machine
Spray glue range: 800*700mm
Running speed: 10-800mm/s
Overall dimensions: 1200*1000*1300mm

Product Details

Product Tags

Plane automatic water glue spraying andgluing equipment-low viscosity glue equipment (with flowable glue)

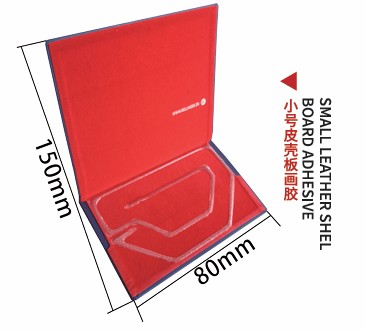

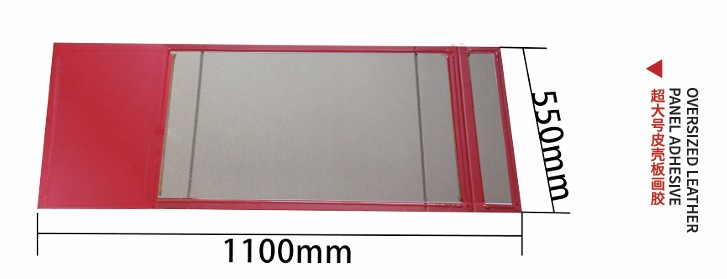

Platform automatic spraying and gluing widely used (shoes andclothing, leathergoods and bags, paper packaging, furniture, automobileselectronics 3C, and new energy

Mainly upgrade manual glue spraying and gluing Automatic equipment spray glue.


                                                   Specifications


Work accuracy士0.5mm
Hot melt glue gunDispensing/Spraying Gun
Device characteristicsSide spray,flat spray
Gas source requirements0.6ipa
0perating voltage220V/50Hz
Work power3.2kw
Applied glueHotmeltglue,pressuresensitiveglue
Adhesive valve configurationAutomatic adhesive valve（Atomized spiral spray glue)
Run speed10-1000mm/s
Motor configurationXYservo motor
Spray width15-20mm
Work platformStainless Steel Countertop
Programming systemTouchintelligentcontrolsystem
